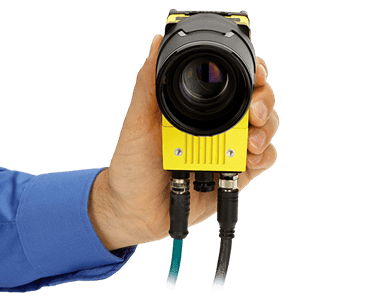

COGNEX INSIGHT 9000 VISION SYSTEM

The In-Sight 9000 is a rugged and ultra-high-resolution standalone vision system that provides high accuracy part location, measurement, and inspection over a large area. This system can acquire and process exceptionally detailed images, even when mounted at longer distances.

In-Sight 9000 Features

Large field of view without compromising resolution.

The In-Sight 9000 records a wide field of view, allowing users to study huge objects while preserving high image resolution. Customers can also mount the vision system away from conveyors, keeping it secure from hazardous equipment.

A single camera solution for multi-camera applications.

The In-Sight 9000 eliminates the need for additional cameras in situations involving huge objects or parts. When compared to multi-camera systems, the In-Sight 9000 is simpler, requires fewer calibrations, and costs less. The self-contained device decreases the quantity of equipment required for production lines with limited space. Furthermore, IP67-rated housing protects the system from liquids and dust, eliminating the need for an external enclosure.

Fully customisable; no programming necessary.

The In-Sight 9000 addresses applications that previously needed programming on PC- or controller-based systems. The In-Sight EasyBuilder interface walks operators through a step-by-step configuration procedure, while the sophisticated spreadsheet view provides immediate access to vision tools. A single application setup environment enables clients to operate with the same UI independent of image quality requirements or application complexity.

Industry-leading vision tools and image processing technology.

The In-Sight 9000 is preloaded with Cognex's industry-leading vision tools and image processing technologies, including PatMax RedLine, the gold standard for rapid, robust, and high-accuracy 2D pattern matching. The In-Sight 9912 model also includes HDR+, which pushes the limits of high dynamic range (HDR) technology by improving visual contrast throughout the entire image without sacrificing acquisition speed.

Image capture options include both line scan and area scan.

The In-Sight 9000 supports both line and area scan image acquisition modalities.

In-Sight 9902L Line Scan.

The In-Sight 9902L line scan vision system is intended to inspect large, cylindrical, and continually moving objects. It collects 2,000 pixels each line, resulting in 32MP images (16,000 lines) that allow vision tools to undertake extremely detailed inspections. To keep up with the quickest production lines, each pixel line is captured at a scan rate of 67,000 lines per second (15us). The 9902L requires only a modest view of the target part, making it perfect for installations with a limited field of view or mounting space.

In-sight 9912 Area Scan

The In-Sight 9912 area scan vision system, which comes in both monochrome and color varieties, is suitable for evaluating large, fixed parts. The 9912 captures comprehensive images for high accuracy measurements and inspections without losing field of view, using 12MP (4096 x 3000 pixel) resolution.

Cognex in sight image contrast

Process exceptionally detailed images

Customers can choose vision tools configurable between line scan and area scan image acquisition options for continuous imaging imaging continuously moving of moving objects or stationary ones. The full suite of vision tools available through the In-Sight EasyBuilder interface solves a wide range of applications across industries. Standalone vision systems can scan image acquisition options and works with continuously moving objects on fastest production lines. Cognex in sight self contained unit reduces errors.

The ultra high resolution line In-Sight 9000 captures a large field of view, which allows inspection of sizable objects while maintaining exceptional image resolution. This feature enables users to mount the vision system away from conveyors and hazardous equipment, maintaining a safe distance.

Sight 9000 vision system maintaining exceptional image resolution

Using the cognex sight 9000 eliminates the need for multiple cameras in applications with large objects or parts, reducing complexity, calibration requirements, and cost compared to multi-camera systems. The self-contained unit industrial-grade vision systems combine a library of advanced vision tools with high-speed image acquisition, processing and reduces the amount of equipment to be installed on space-restricted production lines. Additionally, the IP67-rated housing protects the system from liquids and dust without the need for an external enclosure.

Overall, the In-Sight 9000 vision systems delivers outstanding performance, flexibility, and durability. Its exceptional imaging capabilities, versatile toolset, and rugged design make it an ideal solution for applications in various industries.
